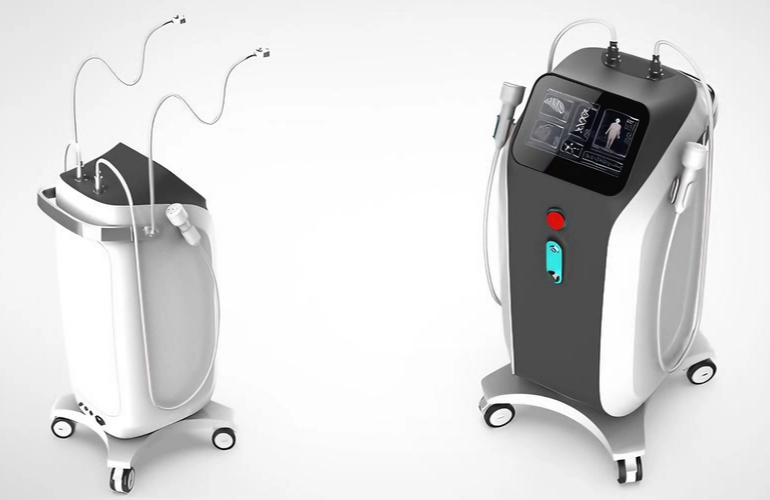

Laser therapeutic instruments are widely adopted in dermatology, ophthalmology, urology and aesthetic medicine. From freckle removal and hair‑reduction to ophthalmic surgery and tumor ablation, laser therapy has revolutionized conventional treatment modalities with its minimally invasive and high‑precision characteristics.
Nevertheless, laser is a double‑edged sword. Wavelength determines penetration depth and selective absorption by target tissues such as melanin and hemoglobin. Pulse width directly governs thermal injury magnitude and treatment safety. Wavelength shift or out‑of‑specification pulse width not only compromises therapeutic efficacy, but may also trigger medical incidents including tissue burns.Therefore, wavelength and pulse‑width testing constitutes a core safety‑compliance procedure throughout R&D, manufacturing and periodic verification of laser therapeutic instruments.
01 Two Core Performance Parameters
Wavelength: Determines Target Location and Penetration Depth
Wavelength acts as the identity marker of a laser, defining how laser radiation interacts with biological tissues. Different tissues feature selective absorption at specific laser wavelengths. Typical examples are listed below:
755 nm (Alexandrite laser): High melanin absorption, suitable for freckle treatment and hair removal
808 nm (Diode laser): Moderate penetration depth, widely recognized as the gold standard for hair‑reduction applications
1064 nm (Nd:YAG laser): Deep tissue penetration, applied for deep vascular lesions and skin tightening
2940 nm (Er:YAG laser): Extremely high water absorption, deployed for precise skin ablation
For medical‑grade lasers, wavelength deviation must be maintained within tight tolerances. Ophthalmic and aesthetic lasers commonly require a tolerance of ±2 nm to ±5 nm.
Pulse Width: Determines the Extent of Thermal Diffusion
Pulse width refers to the duration of a single laser pulse, which directly influences the scope of thermal effects:
Millisecond‑range pulses: Obvious thermal diffusion, ideal for hair removal (hair follicles require sufficient thermal exposure time)
Microsecond‑range pulses: Limited thermal damage, suitable for pigment‑related lesion treatment
Nanosecond‑range pulses: Dominated by photoacoustic effects, applied for tattoo removal and pigment fragmentation
Picosecond‑range pulses: Ultrashort pulses produce photomechanical effects with negligible thermal injury
Excessively broad pulses may burn adjacent healthy tissue, while overly narrow pulses can fail to deliver expected therapeutic outcomes.
02 Testing Methodology
Wavelength and pulse‑width measurements require high‑precision instrumentation and shall be performed in accordance with international standards.
Wavelength Testing
A high‑resolution optical spectrum analyzer scans the laser output spectrum to verify whether the peak wavelength matches the nominal specification.
Key requirements: Constant‑temperature test environment (temperature fluctuation induces wavelength drift); the spectrum analyzer shall be periodically calibrated with traceable references.
Pulse‑Width Testing
For pulsed lasers, a high‑speed photodetector paired with an oscilloscope captures the time‑domain waveform of individual pulses. Pulse‑width values covering nanosecond, microsecond and millisecond ranges are derived from waveform analysis, alongside stability assessment of repetition frequency.
Key requirements: The photodetector shall possess a response speed far faster than the pulse under test; the oscilloscope must have sufficient bandwidth to resolve fine pulse features.
03 Testing Cycles and Compliance Recommendations
To guarantee safety across the full service life of devices, testing falls into two major categories:
Type Testing & Registration Testing
Prior to market launch, qualified third‑party laboratories conduct full‑performance testing and issue CMA/CNAS‑accredited reports to support medical device registration or FDA 510(k) submission.
Periodic Metrological Calibration
For clinically deployed equipment, semi‑annual or annual testing is recommended according to service frequency, to monitor parameter drift caused by equipment aging.Risk of wavelength drift: Long‑term operation, temperature variation and aging of optical components may lead to wavelength deviation. Once tolerances are exceeded, laser energy may target unintended tissues, resulting in reduced therapeutic performance or even medical accidents.
04 Our Testing Services
As an accredited third‑party laser‑testing laboratory, we deliver comprehensive solutions for wavelength and pulse‑width characterization of laser therapeutic instruments:
Accreditation: CMA‑ and CNAS‑recognized laboratory; reports valid for medical‑device registration filings
Wavelength testing: High‑resolution spectral analysis for accurate peak‑wavelength and deviation measurement
Pulse‑width testing: High‑speed photodetector‑oscilloscope test system supporting pulse‑width measurement from nanosecond to millisecond scales
Standard references: IEC 60601‑2‑22 (safety requirements for medical laser equipment), ISO 13695 (test methods for laser wavelength)
Periodic calibration: Routine verification and parameter validation for in‑service devices
Broad product coverage: Medical therapeutic lasers, aesthetic devices, LiDAR systems and industrial lasers
